Kraftform Kompakt user ranges – the new special sets – compact yet very versatile. Suitable for all sanitary, wood, metal or electrical applications.
- Robust Zyklop Mini ratchet suitable for take-up of bits and sockets
- Torque of over 65 Nm thanks to fine-pitched ratchet mechanism and small return angle of 6°
- Ratcheting screwdriver with Rapidaptor technology for rapid bit change
- High quality wood twist drill bits for drilling soft wood, hard wood and laminated panel material
- Set in robust textile box
caracteristicile produsului
Special sets
Kraftform Kompakt H 1 Wood
Compact tool set with the 41 most important screwdriving tools for jobs involving wood.

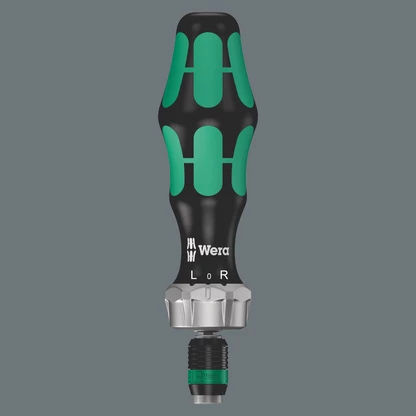

816 RA Ratchet screwdriver
Ratchet screwdriver, fine-tooth design for minimal return angle, switchover ring (right, locked, left), maximum torque of up to 50 Newton metres, 1/4" hexagon chuck with Rapidaptor technology i.e. rapid-in, rapid-out, rapid-spin, chuck-all and single-hand function for rapid bit change, magnetic, suitable for hexagon socket insert bits as per DIN ISO 1173-C 6.3 and E 6.3 and Wera series 1 and 4

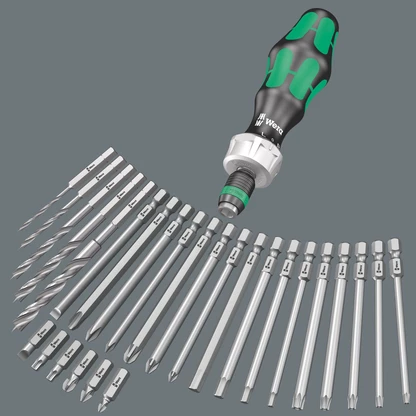

Handle/interchangeable blade system
The handle/interchangeable blade system allows rapid exchange of the blades required for a wide range of applications.
The Zyklop Mini Ratchets
For all difficult-to-access applications.
Twist drill bits for wood applications
Twist drill bits - for wood applications
- 1/4" drive suitable for holders as per DIN 3126-D 6.3 (ISO 1173)
- Hexagon shaft for very high torque transfer
- HSS = high speed steel
- Finely adjusted material elasticity for long service life
- Excellent concentricity
- Tough-absorbing tempered bits for particularly long service life
Aflați mai multe despre acest produs
Descrierea produsului
Compact tool set with the 41 most important screwdriving tools for applications involving wood. Includes the bit ratchet Zyklop Mini with extension and socket adaptor; 8 manual and power tool sockets, sizes 5.5-13, 1 ratchet holder 816 RA with ratcheting function, fine-pitched teeth for small return angle, switchover ring (right, fixed, left), maximum torque 50 Nm and bit take-up with the Rapidaptor technology; 1 universal bit holder; 6 bits in a length of 25 mm; 16 bits of a length of 89 mm; 5 wood twist drill bits with a diameter of 3-8 mm; 1 screw gripper for firmly holding screws; 1 single-pole phase tester 247; textile box, very robust and durable; can be positioned upright in the workshop shelf for convenient storage; additional surface protection thanks to the textile outer material; low weight and volume for simplified mobility.
Unelte din acest set
11/4" x 140 mm
05051494001
8001 A Bit Ratchet 1/4"
11/4" x 87 mm
11/4" x 25 mm
(1)
05136000001
(1) With friction ball; for manual nut spinner sockets
11/4" x 75 mm
05003525001
15.5 x 23 mm
05003504001
16 x 23 mm
05003505001
17 x 23 mm
05003506001
18 x 23 mm
05003507001
110 x 23 mm
05003509001
112 x 23 mm
05003511001
113 x 23 mm
05003512001
11/4" x 50 mm
05134480001
1PH 1 x 89 mm
05059760001
1PH 2 x 89 mm
05059775001
1PH 3 x 89 mm
(1)
05059795001
(1) Hexagonal blade
1PZ 1 x 89 mm
05060029001
1PZ 2 x 89 mm
05060035001
1PZ 3 x 89 mm
(1)
05060043001
(1) Hexagonal blade
1PZ 1 x 25 mm
05072080001
1PZ 2 x 25 mm
05072082001
1PZ 3 x 25 mm
05072084001
1TX 10 x 89 mm
05060050001
1TX 15 x 89 mm
05060051001
1TX 20 x 89 mm
05060052001
1TX 25 x 89 mm
05060053001
1TX 30 x 89 mm
05060054001
1TX 20 x 25 mm
05066487001
1TX 25 x 25 mm
05066488001
13 x 89 mm
05059630001
14 x 89 mm
05059631001
15 x 89 mm
05059632001
16 x 89 mm
(1)
05059633001
(1) Hexagonal blade
11 x 5.5 x 89 mm
05059488001
11 x 5.5 x 25 mm
05072059001
13 x 70 mm
05104600001
14 x 74 mm
05104601001
15 x 85 mm
05104602001
16 x 95 mm
05104603001
18 x 110 mm
05104604001
Seturi cu acest instrument:
134 pieces
Aplicații:
Holz
