Kraftform Kompakt user ranges – the new special sets – compact yet very versatile. Suitable for all sanitary, wood, metal or electrical applications.
- Incredibly fast ¼" Zyklop Speed ratchet with pivoting ratchet head and 5 predefined locking positions
- Manual and power tool sockets (non-impact) with ball-stop groove and knurling at lower end for more grip
- Multi-component Kraftform handle of the bit holder for fast and ergonomic screwdriving
- Comprehensive accessories such as bits, drill bits, screw gripper and single-pole phase tester
- Set in robust textile box
Product features
Special sets
Kraftform Kompakt M 1 Metall
Compact tool set with the 39 most important screwdriving tools for jobs involving metal.
Zyklop “6 in 1”
1. Fine-tooth ratchet 2. Flex-head ratchet 3. Angle ratchet 4. Quick-release ratchet 5. Power ratchet 6. Screwdriver
Fast movers
The Zyklop Speed ratchets are really fast movers. The gyrating mass design means that screwdriving is accelerated. The rotation-symmetric structure of the Kraftform handle and the free-turning sleeve reinforce this rapid twisting process, particularly when the ratchet does not engage due to too little resistance in the thread.
Manual and machine sockets
The manual and machine sockets can be used both for hand and power tools use (non-impact). Users need just one socket set for all applications.

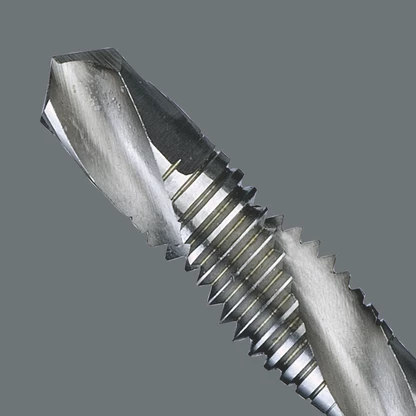

Combination drill bits
Combination drill bits
- Application: Core-hole drilling, tapping and deburring in one operation
- 1/4" drive suitable for holders as per DIN 3126-D 6.3 (ISO 1173)
- Hexagon shaft for very high torque transfer
- HSS = high speed steel
- Finely adjusted material elasticity for long service life
- Excellent centring properties
- Straightforward cutting
- Perfect chip removal
- Low jamming risk
- Precise return control
Find out more about this product
Product description
Compact tool set with the 39 most important screwdriving tools for jobs on metal. Includes the incredibly fast ¼" Zyklop Speed ratchet and accessories; 7 manual and power tool sockets, sizes 5.5-13, 1 universal bit holder; 13 bits in a length of 89 mm; 6 metal twist drill bits with diameter of 3-10 mm; 1 screw gripper for firmly holding screws; 1 single-pole phase tester 247; textile box, very robust and durable; can be positioned upright in the workshop shelf for convenient storage; additional surface protection thanks to the textile outer material; low weight and volume for simplified mobility.
Tools in this set
11/4" x 152 mm
05003500001
11/4" x 150 mm
05003526001
11/4" x 56 mm
05003527001
11/4" x 37 mm
05003529001
11/4" x 119 mm
05051462001
15.5 x 23 mm
05003504001
16 x 23 mm
05003505001
17 x 23 mm
05003506001
18 x 23 mm
05003507001
110 x 23 mm
05003509001
112 x 23 mm
05003511001
113 x 23 mm
05003512001
1PH 1 x 89 mm
05059760001
1PH 2 x 89 mm
05059775001
1PH 3 x 89 mm
(1)
05059795001
(1) Hexagonal blade
13 x 89 mm
05059630001
14 x 89 mm
05059631001
15 x 89 mm
05059632001
16 x 89 mm
(1)
05059633001
(1) Hexagonal blade
1TX 10 x 89 mm
05060186001
1TX 15 x 89 mm
05060187001
1TX 20 x 89 mm
05060188001
1TX 25 x 89 mm
05060189001
1TX 30 x 89 mm
05060191001
11 x 5.5 x 89 mm
05059488001
12.5 mm x 36 mm x M 3
05104640001
13.3 mm x 39 mm x M 4
05104641001
14.2 mm x 41 mm x M 5
05104642001
16.8 mm x 51 mm x M 8
05104644001
18.5 mm x 59 mm x M 10
05104645001
15 mm x 44 mm x M 6
05104643001
13 x 38 mm
05104610001
14 x 44 mm
05104613001
15 x 50 mm
05104616001
16 x 50 mm
05104618001
18 x 51 mm
05104620001
110 x 54 mm
05104622001
14.5-6 x 41 mm
05073681001
Hook and Loop Fastener Strip 240
150 x 240 mm
Applications:
Metall
