The torque function can be deactivated so that the tool can also be used for loosening.
Click-Torque Lock A 6 R/L Torque wrench, adjustable, Torque Lock function, continuous bit mounting (1/4"), 2.5-25 Nm
05075694001, 1/4" x 2.5-25 Nm- For clockwise and counterclockwise operation
- Torque Lock function: The torque function can be deactivated so that the tool can also be used for loosening screws and bolts
- With continuous bit mounting (1/4") for controlled clockwise and counterclockwise torque operation
- Extra click: audible and tactile torque setting
- Torque wrench gives an audible and tactile signal
- Measuring range: 2.5-25 Nm; precision ±4 % as per DIN EN ISO 6789-1:2017-07
מאפייני המוצר

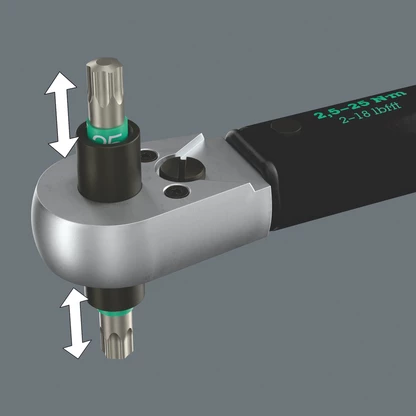

For 1/4" hex drive bits
The continuous bit mounting (bits can be inserted from both sides of the torque wrench) is suitable for all 1/4" bits as per ISO 1173.

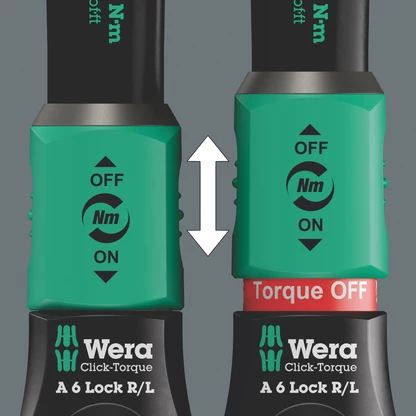

Torque Lock function
Exact
Precision of ±4 % as per DIN EN ISO 6789-1:2017-07.
Easy and safe
Easy setting and saving of the desired torque value; easy to read on main and fine scales.
Setting with Speed
With audible and tactile locking when the scale values are reached.
Release mechanism
On reaching the desired torque value, an audible and tactile mechanism is triggered.
פרטי המוצר
נתונים ועובדות
Part number
05075694001
Mounting size inch
1/4"
Main scale graduation Nm
1
Main scale measuring range Nm
2.5-25
Subscale measuring range lbf. ft.
1-18
Torque wrench length mm
299
Handle length G2 mm
123
Clock diameter mm
42
Diameter of the head mm
26
Height ratchet head H2 mm
11.75
Torque wrench length (inches) inch
11 49/64"
Handle length G2 (inches) inch
4 53/64"
Watch diameter (inches) inch
1 41/64"
Tip diameter (inches) inch
1 1/64"
Ratchet head height H2 (inches) inch
29/64"
על רשימת המשאלות
למידע נוסף על מוצר זה
תיאור המוצר
Adjustable torque wrench for controlled clockwise and counterclockwise torque operation. With continuous external hexagon mounting for 1/4" hex drive bits (bits can be inserted from both sides of the torque wrench). Also suitable for 1/4" sockets with the 870/1 adapter (05136000001). The torque function can be deactivated (Torque Lock function), so that the tool can also be used for loosening. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque value is reached. Fine-toothed reversible ratchet with 45 teeth. Accuracy of ±4 % as per DIN EN ISO 6789-1:2017-07.
